Cloud Editor Particle Emitter Size Issue on Mobile Devices

🧑‍💻 Technical Support
1

Hi everyone,

I’m encountering an issue with the cloud editor particle emitter size while using the rocket example. On the simulator in Cloud Editor, the particle size adapts to the value I set (e.g., 500), but on real devices the behavior is different:

iOS: The particle size appears to have a hard limit. For example, setting the size to 500 looks the same as setting it to 50. Only very small sizes (1–5) show any noticeable difference.
Android: The behavior is a bit better and adapts somewhat to the size, but still not as expected compared to the desktop simulator.

I’m using the following meta tag in my HTML:

<meta name="8thwall:renderer" content="aframe:1.3.0" />

And I’m including the particle system component via:

<script src="//cdn.8thwall.com/web/aframe/aframe-particle-system-component-1.1.4.min.js"></script>

This is the code snippet I’m using to set up the particle system:

rocketParticles.setAttribute('particle-system', {
  color: `${randColor1},${randColor2}`,
  positionSpread: '0 0.5 0',
  rotationAxis: 'x',
  duration: '1',
  size: '500',
  direction: '-1',
  rotationAngle: '0',
  particleCount: '25',
  maxParticleCount: '50',
  maxAge: '3',
  accelerationValue: '0, -1, 0',
  accelerationSpread: '0 -1 0',
  velocityValue: '0 0 0',
  blending: 1,
})

I’ve also noticed the following error in the console on mobile devices:

THREE.WebGLRenderer: OES_texture_float_linear extension not supported.

Could this extension limitation be causing the particle size not to scale as expected on mobile devices? Has anyone experienced similar behavior or found a workaround to make particle sizes consistent across platforms?

Thanks in advance for any help!

simulator
simulator1920×1208 130 KB

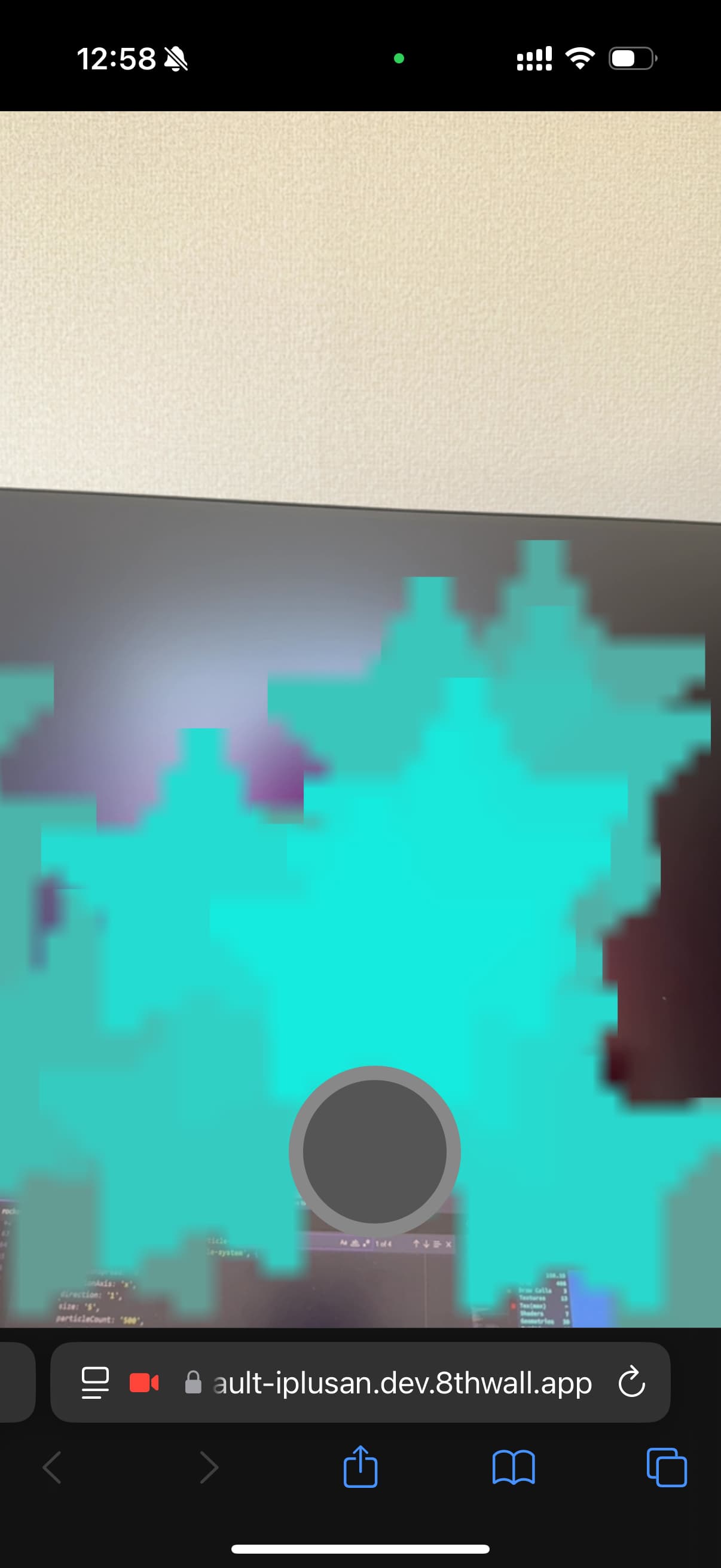

moblie2
moblie21206×2622 105 KB

mobile
mobile1206×2622 121 KB

2

Hi @i_an - out of curiosity, do you see the same behavior with A-Frame 1.5.0?

<meta name="8thwall:renderer" content="aframe:1.5.0" />

To continue debugging, I would recommend removing 8th Wall specific component from your scene (i.e. xrweb, xrextras- etc). You can add a “z” or any other character to these components to effectively remove them temporarily for testing (xrweb → zxrweb).

If the same issue can be reproduced in a vanilla A-Frame scene, that would indicate the root cause is within the third party component rather than something that 8th Wall has an effect on.

1 Like
3

When I change my renderer meta tag from:

<meta name="8thwall:renderer" content="aframe:1.1.0" />

to

<meta name="8thwall:renderer" content="aframe:1.5.0" />

I encounter the following issues:

Console Errors:

THREE.WebGLRenderer: The property .useLegacyLights has been deprecated… (warning about legacy lighting)

TypeError: Cannot read properties of undefined (reading ‘generateUUID’)

Particle Visibility:

With A-Frame 1.5.0, no particles are shown.

Using A-Frame 1.1.0, the particles appear normally.

Particle Size Differences on Devices:

On my iPad, the particle size is larger.

On mobile phones, the particle size is very small.

According to a Discord answer from Serpentrider, the aframe-particle-system-component uses gl_PointSize to set the particle size, and mobile devices tend to have a much lower maximum point size. This likely explains why the particles appear smaller on mobile.

So I am trying to find a way to work around it without using Geo render…

4

Can you try using this script for the particles instead, and using A-Frame 1.4.1 or 1.5.0?

<script
  crossorigin="anonymous"
  src="https://cdn.jsdelivr.net/gh/c-frame/aframe-particle-system-component@1.1.4/dist/aframe-particle-system-component.min.js"></script>

This should enable to use a newer version of A-Frame, which is generally beneficial, but it sounds like the particle size system is more related to the implementation of the component itself

1 Like
5

I tried A-Frame 1.4.1 and 1.5.0 like this in head.html

<meta name="8thwall:renderer" content="aframe:1.5.0" />


<script
  crossorigin="anonymous"
  src="https://cdn.jsdelivr.net/gh/c-frame/aframe-particle-system-component@1.1.4/dist/aframe-particle-system-component.min.js"></script>

or

<script crossorigin="anonymous" src="https://aframe.io/releases/1.5.0/aframe.min.js"></script>
<script
  crossorigin="anonymous"
  src="https://cdn.jsdelivr.net/gh/c-frame/aframe-particle-system-component@1.1.4/dist/aframe-particle-system-component.min.js"></script>

and this entity in body.html

  <a-entity position="0 -5 -5" particle-system="preset: snow; size:100; particleCount: 100; ">
  </a-entity>

But the particle size on phones still seems way smaller than the size on cloud editor simulator

6

for example, this spe-particle example loads well with bigger particle size in my phone browser.
however the same component doesn’t have the same big particle size in 8th wall.

Here are the components I am using:

http://cdn.8thwall.com/web/aframe/aframe-spe-particles-component.min.js

or this

https://unpkg.com/aframe-spe-particles-component@^1.0.4/dist/aframe-spe-particles-component.min.js

SPE: Clouds
https://squarefeet.github.io/ShaderParticleEngine/examples/clouds.html
